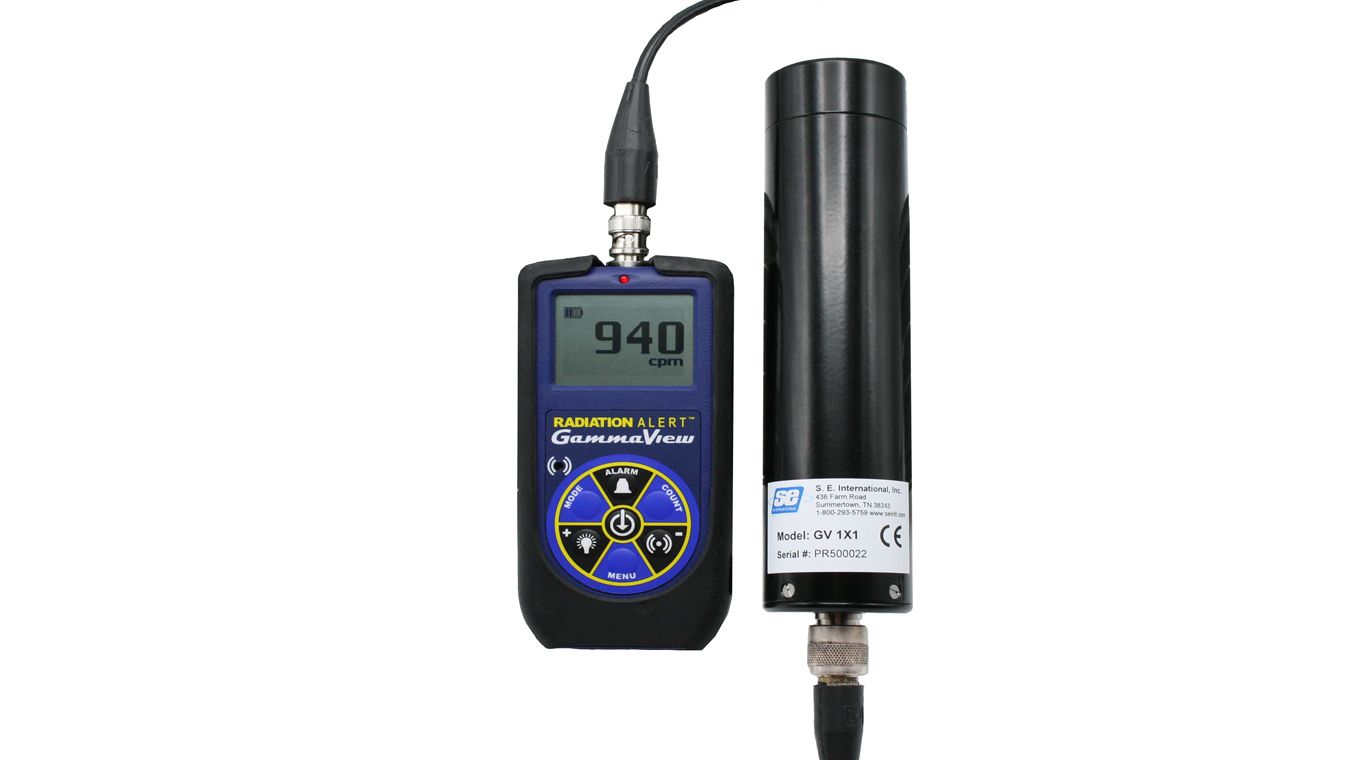

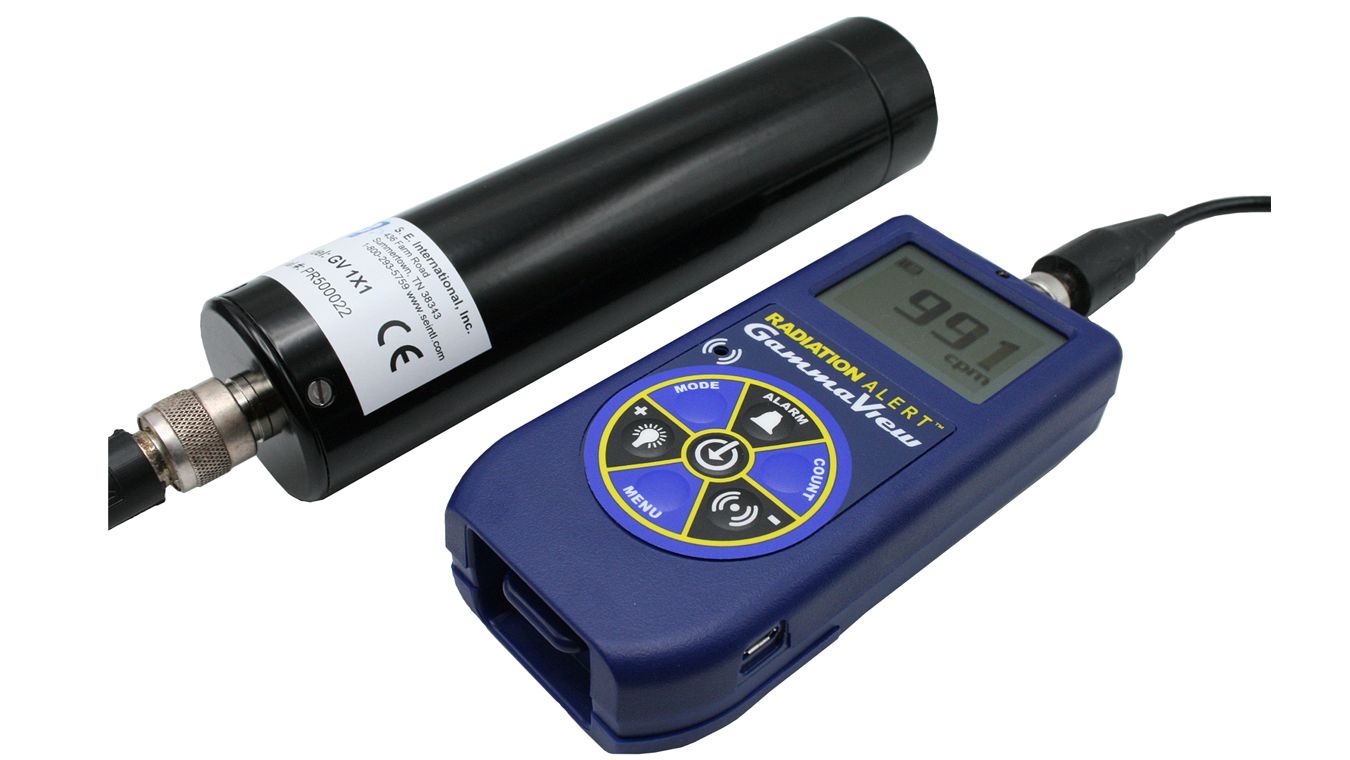

Radiation Alert® GammaView: Advanced Gamma Scintillation Survey Meter
The GammaView is a high-performance gamma radiation survey meter engineered for precise, real-time monitoring across laboratory, industrial, and field environments. Built for versatility, it is perfectly suited for both routine safety monitoring and specialized, complex measurement tasks.
Intuitive & Configurable Operation
Designed for immediate situational awareness, the GammaView ensures operators can respond rapidly to changing radiation levels through clear visual and audible feedback.
- User-Friendly Interface: Features a bright backlit digital display, a red LED count indicator, and a distinct audible beep that signals every detected radiation event.
- Customizable Controls: Easily tailor the instrument to meet specific safety protocols or analytical requirements using selectable alarm thresholds and adjustable counting timers.
Single-Channel Analyzer (SCA) Capability
Beyond standard surveying, the GammaView is equipped with powerful Single-Channel Analyzer (SCA) functionality. This advanced feature allows users to set a defined energy “window” within the gamma spectrum to isolate targeted signals.
- Targeted Detection: Focus exclusively on a specific gamma energy range while actively filtering out unwanted signals and interference.
- Noise Reduction: By narrowing the detection window, the SCA significantly lowers background count rates and improves overall measurement selectivity.
- Precise Source Identification: Enhances your ability to confidently identify and monitor specific gamma-emitting sources, even in cluttered or complex radiation environments.
Specifications
| Gamma Scintillation Detector | The GammaView is optimized for the following probes:
1×1 NaI Scintillation Probe: 2.5 cm (1 in.) dia. × 2.5 cm (1 in.) thick with C connector and 3′ MHV-C cable |
| Operating Range | mR/hr: 1 μR/h to 5 mR/h μSv/hr: 0.001 to 50 CPM: 0 to approx. 875,000 CPS: 0 to approx. 14,584 Total Counts: 999,999 |
| Energy Range | 20 keV to 1.5 MeV |
| Typical Sensitivity | Cs-137 at 1 mR/h (662 keV) Approx. ~2,917 CPS/mR/hr, ~175,000 CPM/mR/hr. |
| Accuracy | ±10% with Source Calibration (Referenced to Cs137) |
| Operating Voltage | Typically 500 to 1200 Volts |
| Selectable Alert Set Range | mR/hr: 1 μR/h to 5 mR/h μSv/hr: 0.001 to 50 CPM: 1 to 875,000 CPS: 1 to 14,584 Pulsating beeper sounds the alert. |
| Display | Graphic Display with Backlight |
| Averaging Periods | Display updates every 3 seconds. At low background levels, the update is the average for the past 30-second time period. The timed period for the average decreases as the radiation level increases. |
| Anti-Saturation | Meter will hold at OVER RANGE in fields as high as 100 times the maximum reading. |
| Outputs | USB: For use with Free Observer USB Software for PCs Bluetooth: Wirelessly connects the instrument with an Android mobile device for use with Free Observer BLE App |
| Count Light | Red LED flashes with each radiation event. |
| Audio Indicator | Internally mounted beeper (can be switched off for silent operation) |
| Power Requirements | Two AA alkaline batteries (included). Approx. 500 hrs @ background. |
| Size | Base unit: 140 × 68 × 33 mm (5.5 × 2.7 × 1.3 in.) Probe: 5.0 × 18.5 cm (2 × 7.3 in.) Cable Length: 3′ |
| Temperature Range | -15°C to +50°C (14°F to 122°F) |
| Humidity | 10% to 70% Non-Condensing. |
| Weight | Base unit: 193 grams (6.8 oz) with batteries Probe: 393 grams (13.8 oz) |
| Includes | NIST Certificate of Calibration, Carrying Case, Rubber Boot, Stand, Lanyard, Mini-USB Cable, Free Observer USB Software Download, free Observer BLE APP, 3′ MHV-C probe cable. |
| Options | Optional Bluetooth module |
| Warranty | 1 Year Limited Warranty |
